PlannerForge: LLM Agents for Scenario-Based Testing of Motion Planners in Autonomous Driving

An LLM-agent framework that extends all scenario-based testing stages — from Scenario Generation to ADS Assessment — and adds two further LLM-enhanced stages: ADS Enhancement and ADS Benchmarking.

Watch Demo Paper (arXiv) Prompts Code Dataset

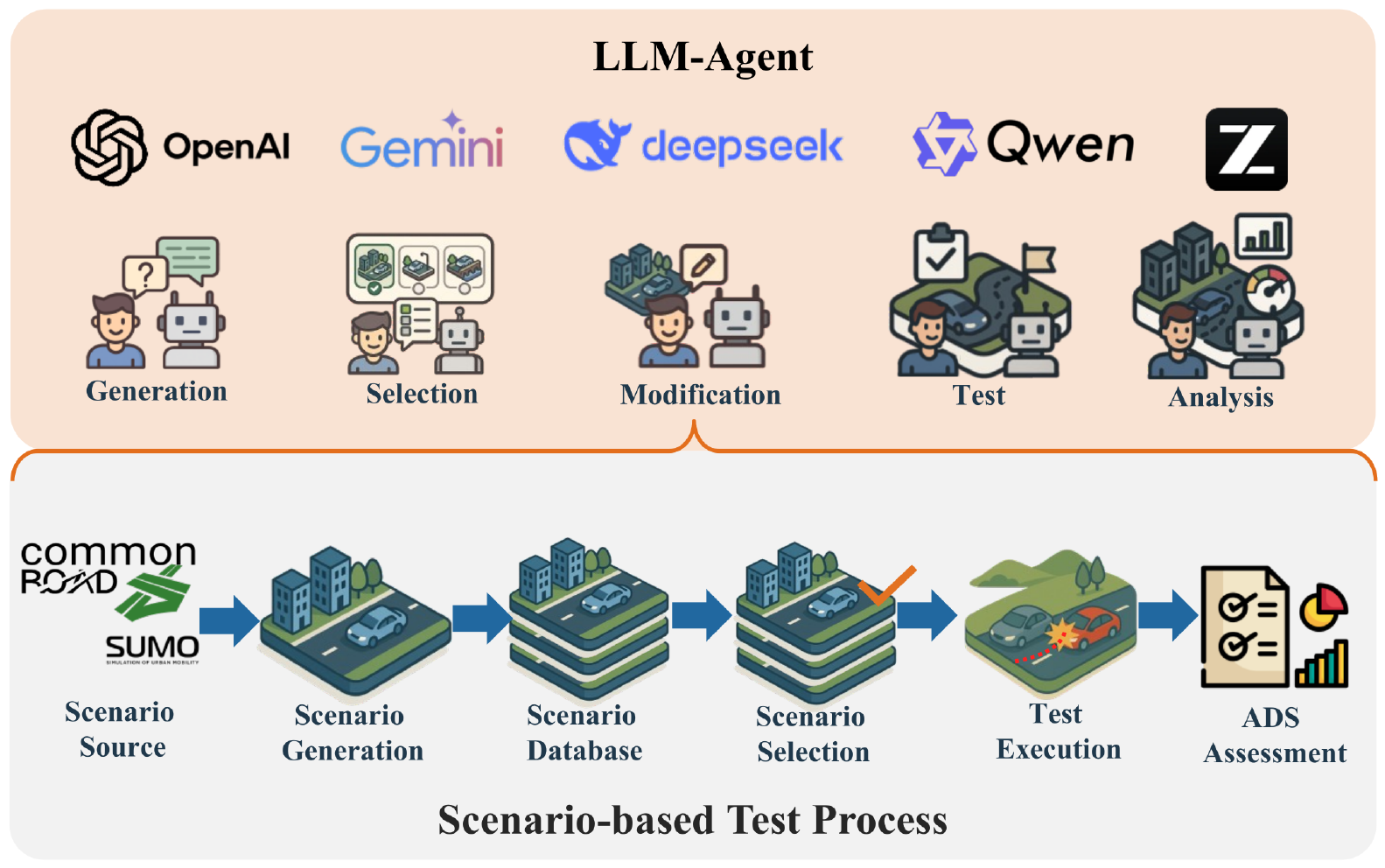

PlannerForge overview: LLM agents automate the scenario-based testing pipeline.
PlannerForge overview. LLM agents automate the scenario-based testing pipeline — generation, selection, modification, test and analysis over a CommonRoad/SUMO scenario process. Click the figure to enlarge.

Yuan Gao1, Sebastian Müller1, Mattia Piccinini1, Marc Kaufeld1, Yuchen Zhang1, Finn Rasmus Schäfer1, Qunying Song2, Johannes Betz1

1Professorship of Autonomous Vehicle Systems, TUM School of Engineering and Design, Technical University of Munich, 85748 Garching, Germany; Munich Institute of Robotics and Machine Intelligence (MIRMI)
2University College London, London, United Kingdom

Technical University of Munich Professorship of Autonomous Vehicle Systems, TUM Munich Institute of Robotics and Machine Intelligence (MIRMI) University College London

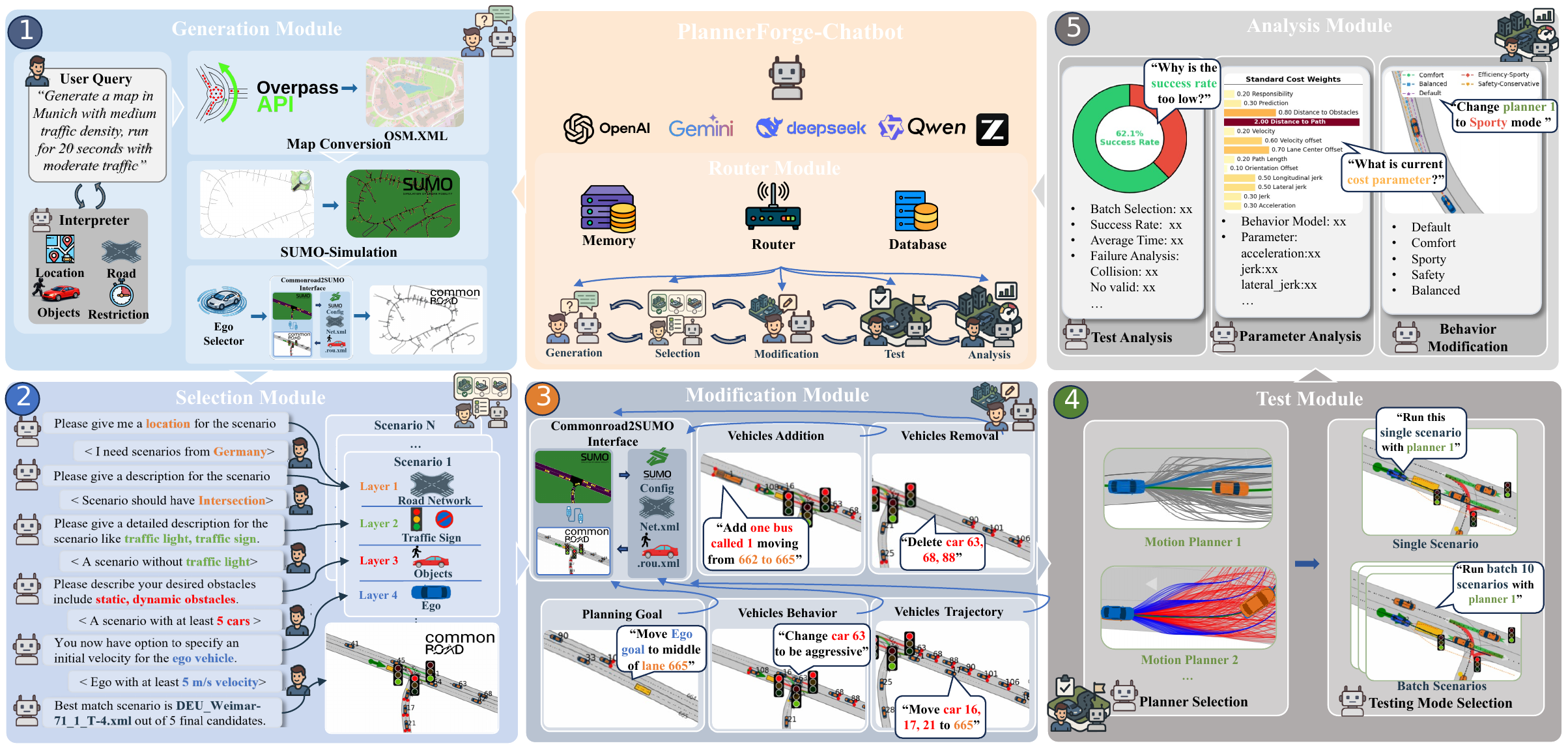

The PlannerForge framework. A chatbot-driven interface routes user intent across the full testing pipeline: Router (classifies user intent post-selection), Generation (OSM+SUMO synthesis), Selection (dialogue-guided retrieval from the CommonRoad database), Modification (LLM-guided SUMO edits), Testing (Frenetix / MP-RBFN execution) and Analysis (LLM-powered result interpretation). The animation builds the diagram module by module; it plays when scrolled into view. View the static figure.
1Scenario Source
2Generation
3Database
4Selection
5Test Execution
6ADS Assessment
+ADS Enhancement
+ADS Benchmarking

Stages 1–6 follow the Riedmaier scenario-based-testing taxonomy; + marks the two LLM-era stages introduced by PlannerForge.

What's New

Key Contributions

  • End-to-end LLM framework. To our knowledge the first framework to unify all six Riedmaier scenario-based-testing stages together with two LLM-era stages (ADS Enhancement, ADS Benchmarking) in a single chatbot-driven pipeline.
  • Empirical evaluation. Ten off-the-shelf LLM backends (five commercial, five open-source; reasoning and non-reasoning) across the five core framework tasks under five prompt conditions — without any domain-specific fine-tuning.
  • Cross-planner benchmark. A multi-planner interface (Frenetix and MP-RBFN) for comparative evaluation on framework-generated and -modified scenarios.
Overview

Abstract

Ensuring autonomous-driving safety is a critical challenge. Scenario-based testing is the systematic process used to validate autonomous-driving systems (ADS), but it remains a fragmented modular pipeline in which scenario generation, retrieval, modification, ADS execution, and result analysis are performed by separate tools with little interaction. LLM agents have shown promise across ADS sub-systems such as perception, planning, and control; however, to our knowledge no prior work covers this scenario-based testing pipeline for ADS as a single LLM-agent framework. We present PlannerForge, an LLM-agent framework that extends all six scenario-based-testing stages (Scenario Generation through ADS Assessment) with two further LLM-era stages, ADS Enhancement and ADS Benchmarking, and integrates two open-source motion planners (Frenetix and MP-RBFN) under a unified interface. We evaluate PlannerForge with ten off-the-shelf LLMs across the five framework tasks under five prompt conditions; best-per-task scores reach 0.88–1.00, with open-source 20–35B backends matching commercial APIs on most tasks. Open-source models such as Qwen3.6:35B match commercial APIs on three of the five tasks. Chaining the modules end-to-end retains 83% / 78% of seed queries (commercial / open). It outperforms Scenario Factory 2.0 on natural-language generation (193 vs. 144 executable of 200) and realises 92–96% of requested city, road and vehicle attributes. It outperforms BM25 at rank 1 selection (92.0% vs. 67.5%) and From-Words-to-Collisions on physically valid edits (≥94% vs. 31%). At N = 400, cost-tuning lifts planner success from 50.4% to 70.2% and cuts collisions from 19.0% to 8.4%, without domain-specific fine-tuning.

8
unified pipeline stages
10
off-the-shelf LLMs
(5 open · 5 commercial)
0.88–1.00
best-per-task scores
2
integrated motion planners
Cloud APIs Qwen3.6-plus DeepSeek-v3.2 GLM-5 Gemini-3-flash GPT-5.4-mini
Open-source (Ollama) Qwen3.6:35B Gemma4:31B GPT-oss:20B think / no-think variants
Live Walkthrough

System Demonstrations

Seven natural-language workflows, driven end to end through the PlannerForge chatbot. They follow the pipeline in order — generate a scenario from a text query or from a map input, select one from the database, modify it, execute it in the motion planner under test, assess the results, then enhance the planner itself. Every clip is a single uncut session; press play on any stage.

1

Scenario Generation (Text)

Generation Module

From a single natural-language text query — a place, the desired traffic, and the ego role — PlannerForge geocodes the location, builds the road network, populates traffic, and renders a runnable CommonRoad scenario.

▶  1:03Generation_text.mp4

2

Scenario Generation (Map)

Generation Module

Driven by a map input instead of a place name — the user supplies the map, and PlannerForge builds the road network from it, populates the traffic and ego role described in the prompt, and renders a runnable CommonRoad scenario.

▶  1:37Generation_map.mp4

3

Scenario Selection

Selection Module

The chatbot retrieves a matching scenario from the database by description — location, road type, obstacles, and dynamics — and returns the best-ranked candidates.

▶  1:30Selection.mp4

4

Scenario Modification

Modification Module

A natural-language edit — rerouting a vehicle, adding or removing traffic, changing driving behaviour, or moving the ego goal — is applied to a selected scenario and re-simulated. The clip also shows single-scenario motion-planner testing, comparing the planner's result before and after the ego-goal modification.

▶  3:33Scenario_Modification.mp4

5

Test Execution

Test Module

The chatbot runs a scenario through an integrated motion planner (Frenetix or MP-RBFN) and plays back the resulting ego trajectory, surfacing the planner's behaviour and outcome for the scenario under test.

▶  1:10Test_Execution.mp4

6

ADS Assessment

Analysis Module

The chatbot assesses the motion planner's results — batch simulations over scenario sets, success and collision statistics, and failure-reason breakdowns — and answers questions about the planner's performance in natural language.

▶  2:13ADS_Assessment.mp4

+

ADS Enhancement

LLM-era stage

The chatbot improves the motion planner itself — an LLM-driven cost- and parameter-tuning loop that iterates on the planner's configuration and re-runs the scenarios, lifting its success rate on the set. Across five batch sizes this is worth +17.6 to +21.3 pp of planner success.

▶  5:42ADS_Enhancement.mp4

Evaluation

Results

10 off-the-shelf LLMs × 5 prompt conditions × 8 task slices, N = 200 queries per cell — roughly 80,000 calls with no fine-tuning. Every figure below is transcribed from the EMNLP 2026 camera-ready; hover a row to read it, and click a numeric header to sort.

0.88–1.00
Best score per task slice
83% / 78%
End-to-end retention (commercial / open)
193/200
Executable scenarios vs 144 for SF 2.0
+19.8 pp
Planner success from cost tuning (N = 400)

The pipeline end to end

Per-module scores do not by themselves show that the stages compose. This table chains them on N = 200 seed queries, each stage consuming the previous stage's actual output. Values are commercial / open (qwen3.6-plus and qwen3.6:35b, cp_icl_cot). Selection and Modification are the leak points.

Against prior scenario-testing tools

Each stage measured against the strongest available baseline, on the same inputs. The LLM buys attribute control in Generation, rank-1 precision in Selection and physically valid edits in Modification — at a cost in seconds and tokens the classical tools do not pay.

ADS Enhancement — cost tuning across batch sizes

The LLM retunes Frenetix cost weights against the hand-set Default configuration across five batch sizes, three independent calls each, scored paired per scenario. Success rises in every batch and collisions fall in every batch; the spread shrinks as N grows.

Per-model ablations — all eight task slices

The full matrix behind the headline numbers: every model under every prompt condition. Bold marks the best value in the column, underline the second best, and the tinted column is that task's headline metric. Click a numeric header to sort; click the model header to restore the paper's ordering.

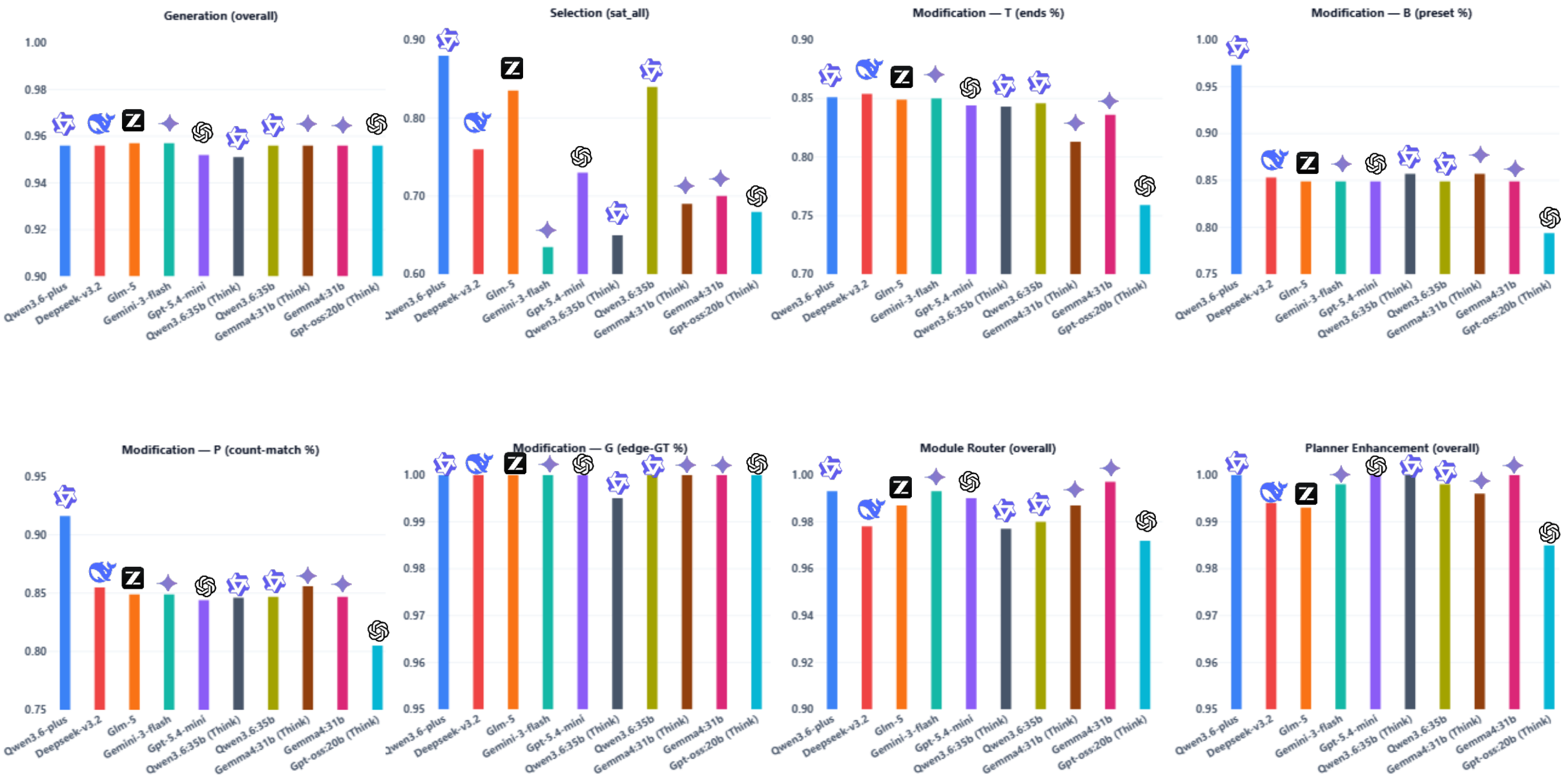

Best score per model across the eight slices

Each panel is one task slice; each bar is one model at its best prompt condition, with its provider's mark above it. Hover a bar for the exact value and the condition that reached it, click a panel to enlarge it with model labels, and click a bar to follow that model across all eight panels. All 80 values lie between 0.64 (Selection) and 1.00, so each panel's scale is zoomed to its own range: bars start at the panel floor, not at zero (marked by the break on the axis).

Static version from the paper (Figure 5): results_tasks.png.

  • Generation. Glm-5 with cp·cot reaches 0.957 (+0.174 over its bare baseline of 0.783) — context prompting plus chain-of-thought nearly saturates intent parsing, and adding ICL gives no further gain.
  • Selection — the hardest task. Qwen3.6-plus with cp·cot achieves 0.880 joint slot satisfaction, up from a 0.180 baseline (+0.700). The strict five-stage filter fails whenever any extracted slot is wrong, and adding ICL on top of CoT (0.835) can hurt by encouraging over-confident slot guesses.
  • Modification. Qwen3.6-plus with cp·icl·cot reaches ≈100% on the headline check of all four sub-tasks. Structural edits (T, P, G) start from high zero-shot baselines (99.0%, 99.0%, 88.5%), while behaviour (B) fails completely zero-shot (0%) and only reaches 100% once advanced prompting supplies the parameter vectors.
  • Module Router. Gemma4:31b with cp·icl·cot reaches 0.997 (+0.275 over baseline), against 45.5% for a hand-crafted regex router — conversational intent is too diverse for keyword matching.
  • Planner Testing. Gpt-5.4-mini with cp·icl scores a perfect 1.000 (baseline 0.675) and beats a schema-constrained YAML editor at 72.5%. Downstream, 155 of 191 emitted configurations (81.2%) run end-to-end in Frenetix.
  • Open beats expectations. Open-source 20–35B backends match commercial APIs on most tasks — Qwen3.6:35B matches them on three of the five.
  • Cost tuning. At N = 400, retuning lifts planner success 50.4% → 70.2% and cuts collisions 19.0% → 8.4% against the hand-set Default, without any domain-specific fine-tuning.
  • Safety-criticality shift. Because every edit is routed through SUMO, all four edit types stay above 94% physically valid, against 31% for From-Words-to-Collisions. Participant (min_risk 1.84 → 1.20, 58 new collisions) and Goal (1.84 → 1.36, 45) stress the planner considerably harder than FWtC's valid edits (1.84 → 1.69, 16).
  • Single-prompt batch comparison. One prompt dispatches a full cross-planner batch over N = 100 shared scenarios: Frenetix 67% success at 8.4 s/scenario vs MP-RBFN 50% at 7.6 s.
Under the Hood

Prompts

Every framework task is driven by off-the-shelf LLMs under five prompt conditions — a cumulative ablation from a minimal baseline up to the full cp·icl·cot. Pick a task, a prompt component, and two conditions to see exactly what each layer adds.

cp · Context Prompt

Adds task context — the full role, output schema, and constraints — on top of the minimal baseline directive.

icl · In-Context Learning

Few-shot worked examples (input → expected output) appended to the prompt so the model imitates the target format.

cot · Chain-of-Thought

Explicit step-by-step reasoning guidance before the final answer, to improve accuracy on harder cases.

Each task is driven by one or more system-prompt components, and every component exists in all 5 conditions.

TaskPrompt components× ConditionsPrompts
Generationosm_intent155
Selectionlocation obstacles road_net tags velocity5525
Modification — Tmanipulation_trajectory net_analysis2510
Modification — Bmanipulation_behavior net_analysis2510
Modification — Ggoal_extraction155
Modification — P_addmanipulation_add net_analysis2510
Modification — P_removemanipulation_remove net_analysis2510
Planner Enhancementplanner_param155
Module Routermodule_router155
Total17 components×5≈85
added in Compare only in Base
Base
Compare

Loading prompts…

Cite

BibTeX

@inproceedings{gao2026plannerforge,
  title     = {PlannerForge: LLM Agents for Scenario-Based Testing of Motion Planners in Autonomous Driving},
  author    = {Gao, Yuan and M{\"u}ller, Sebastian and Piccinini, Mattia and Kaufeld, Marc and Zhang, Yuchen and Sch{\"a}fer, Finn Rasmus and Song, Qunying and Betz, Johannes},
  booktitle = {Proceedings of the 2026 Conference on Empirical Methods in Natural Language Processing (EMNLP)},
  year      = {2026},
  address   = {Budapest, Hungary},
  note      = {Code and data: https://github.com/TUM-AVS/PlannerForge}
}

Accepted to the EMNLP 2026 Main Conference. Code and data will be released at github.com/TUM-AVS/PlannerForge; the code upload is still in progress.
